可調整多軸鑽尾 & 齒輪頭

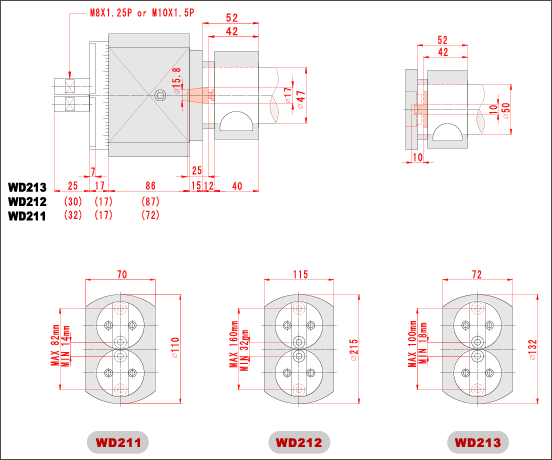

| Model | Spacing | Weight | |||
|---|---|---|---|---|---|
| Min | Max | Max Capacity | Thread | Kg | |
| WD211 | 14 | 82 | Ø10 | M8 x 1.25P | 2.5 |
| WD212 | 32 | 160 | Ø15 | M8 x 1.25P or M10 x 1.5P | 8 |
| WD213 | 18 | 100 | Ø15 | M8 x 1.25P or M10 x 1.5P | 3.7 |
